Metal casting is a manufacturing process in which a liquid metal is poured into a mold, where it cools and solidifies into the desired shape. The mold itself is created using a pattern, which is a replica of the object to be cast.

The Role of Patterns in Metal Casting:

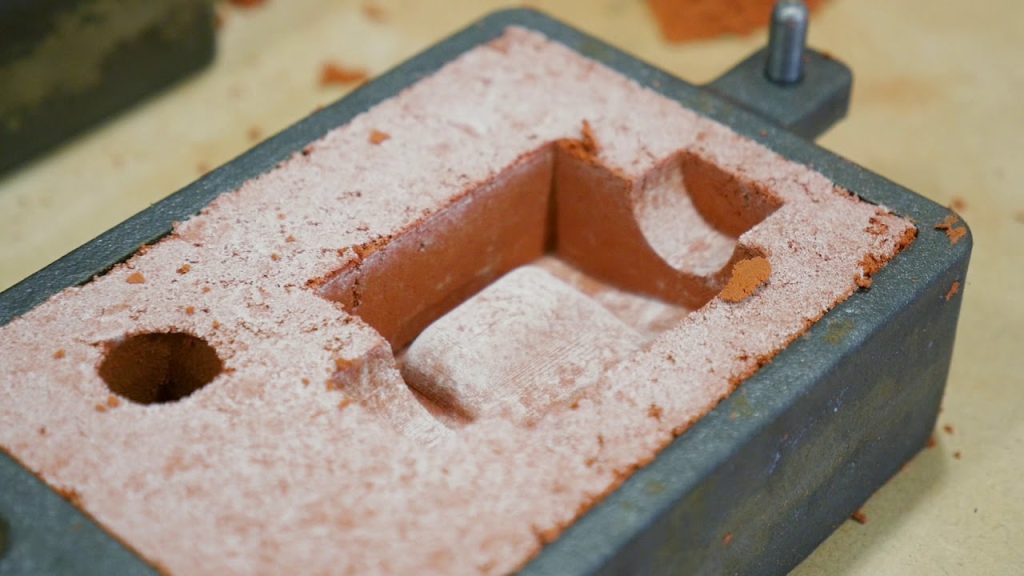

• Creating the Mold Cavity: The pattern is used to create a cavity in the mold that replicates the shape of the desired casting. This cavity can be made in various materials, such as sand, plaster, or metal, depending on the casting process being used.
• Material and Reusability: Patterns can be made from various materials like wood, metal, plastic, and even wax, depending on the casting process and complexity of the part. Simple patterns for sand casting are often made from wood, while more complex patterns for investment casting might be made from metal or plastic. Wooden and metal patterns are reusable, while wax patterns are typically expendable.
• Types of Patterns: There are different types of patterns used in metal casting, each with its own advantages and limitations. Some common types include:
  • Solid patterns: These are single-piece patterns that are used to create a single casting.
  • Split patterns: These are patterns that are made in two or more pieces, which allows them to be used to create castings with undercuts or internal cavities.
  • Match-plate patterns: These are patterns that are mounted on a plate and can be used to create multiple castings at the same time.

Benefits of Metal Casting:

• Versatility: Metal casting can be used to create a wide variety of shapes and sizes, from small, intricate parts to large, complex structures.
• Wide range of metals: It can be used with a wide range of metals, including iron, steel, aluminum, bronze, and many more.
• Cost-effective for large quantities: For large production runs, metal casting can be a cost-effective way to produce parts.

Overall, metal casting is a versatile and widely used manufacturing process that allows for the creation of a wide variety of metal parts.
